If you take the winter off from camping because it's too cold, then you definitely need one of these portable diesel heaters from Planar!

Unlike propane heaters, which will cause a build up of condensation, this Planar heater produces a dry heat. You'll be toasty warm and dry all night long.

Altitude Compensation

Unlike other heaters, these have an altitude-compensating feature built right into the unit that allows them to operate at higher altitudes. An on-board pressure sensor detects the current altitude and makes adjustments to the fuel pump in order to introduce the right amount of fuel for the conditions.

As a result, at altitudes above 6,500 ft sea level, performance will drop by roughly 5% every 1,640 ft.

For example, at 12,000 ft above sea level the heater output would be reduced by roughly 16.75%. At this altitude, this means a 2kw heater's output would be reduced to 1.6kw and a 4kw heater's output would be reduced to 3.3kw.

All heaters come with 10' duct hose.

PLEASE NOTE:

The Planar manual states that the heater includes an extra fuel cap. It does not. The heater only comes with one.

The power cable supplied with the heater comes with ring terminals by default.

Signature is required for delivery.

If you don't want ring terminals, you will either need to replace the ring terminals yourself, or buy one of our adapters that can be used to interface with different power sources. These adapters require our custom 20' adapter-ready power cable, seen in the video below.

SPECS

2 kW version

Heat Output:	0.8 – 2.0 kW / 2,700-7,000 btu
Fuel Consumption:	0.10-0.24 l/h / 0.03-0.06 gal/h
Nominal Supply Voltage:	12V
Power Consumption; W (A):	10-29 w (0.8-2.42 A)
Airflow Rate:	34-75 m³/h
Weight:	11.6 kg. / 25.5 lb.
L x D x H:	324 x 118 x 119 mm. / 24 x 16.5 x 19 in
Operating Modes:	Temperature/Power

4 kW version

Heat Output:	1.0 – 4.0 kw / 3,400-13,600 btu
Fuel Consumption:	0.12-0.51 l/h / 0.03-0.14 gal/h
Nominal Supply Voltage:	12V
Power Consumption; W (A):	10-57 w (0.8-4.75 A)
Airflow Rate:	70-168 m³/h
Weight:	15 kg. / 33 lb.
L x D x H:	635 x 483 x 483 mm. / 25 x 19 x 19 in
Operating Modes:	Power

Warranty

2 Years

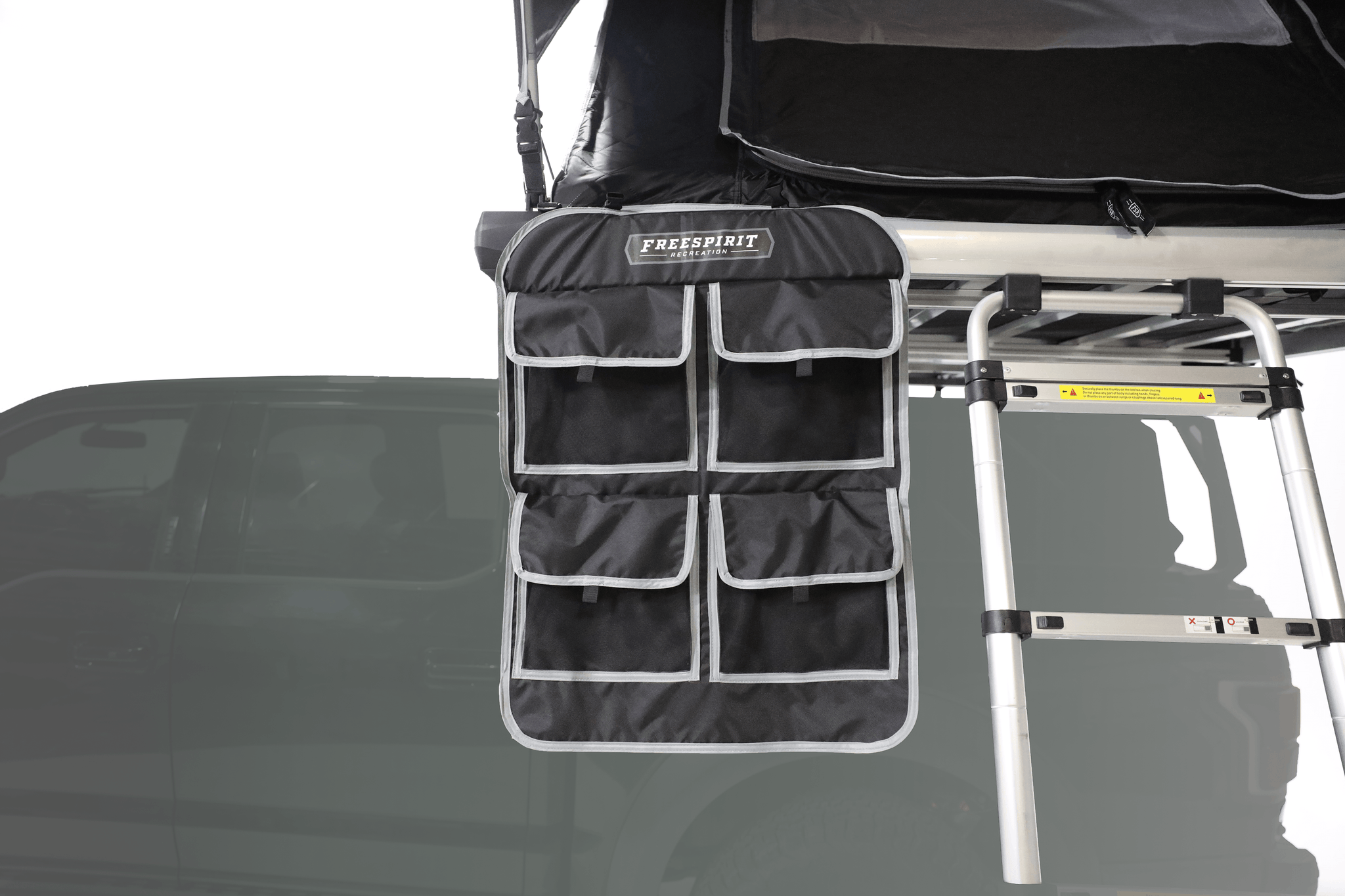

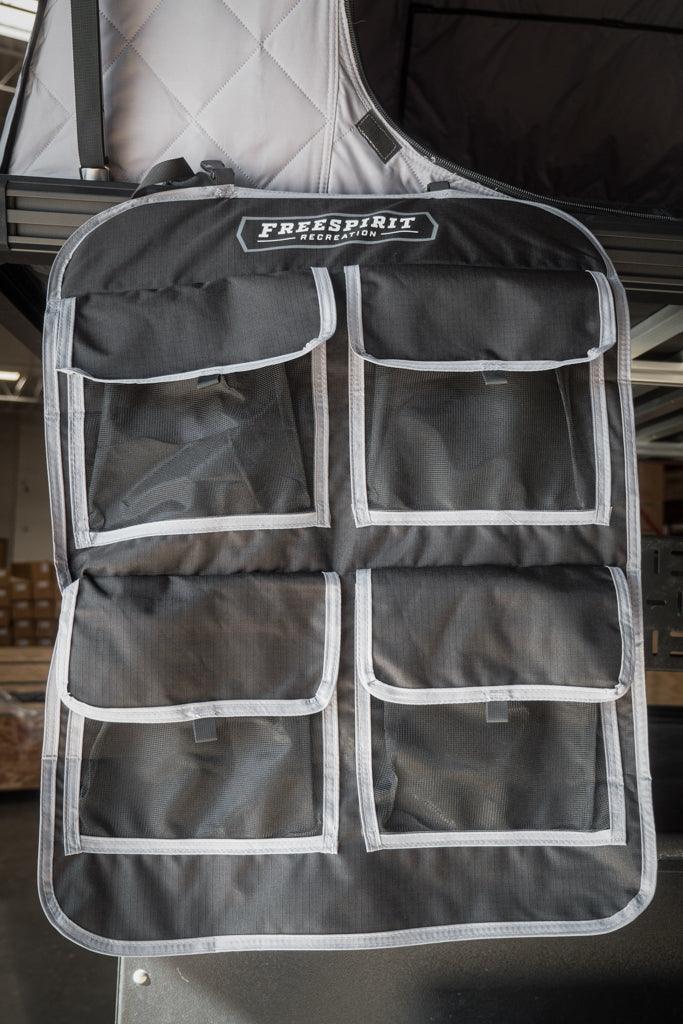

Multi-Tiered Hanging Storage Rack
